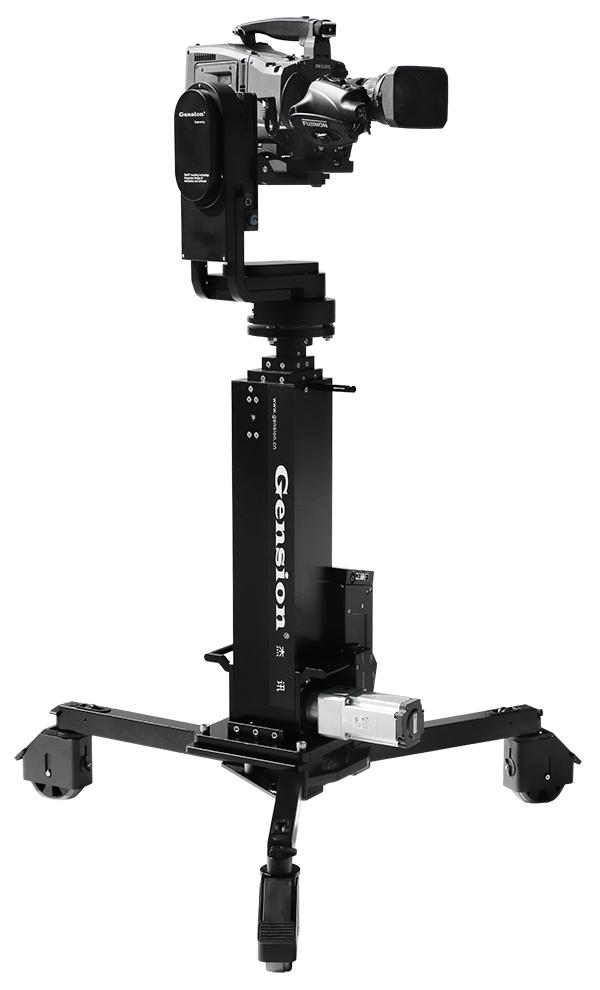

GIRAFFE Studio Tower-Cam Robotics
Information
● Digital auto shooting
● AI human body auto tracking
● Multi-camera centralized control shooting
● Dealing with temporary changes in shooting mode
● High load-bearing head
This device is an intelligent studio auto lifting system aimed at achieving unmanned and automated recording of studio programs.
Three main shooting functions
• AI auto shooting
• Accurate and quick preset positioning, soft motion shooting functions
• Multi-camera robotics centralized shooting
Quiet & Smart
Lower & Taller
Tech Specs
| Name | Giraffe | Giraffe-PRO | Giraffe-VR |
| Fluid Head Type | L Type,2 Axis, Built-in Brushless Motors | L Type,2 Axis, Built-in Brushless Motors and Sensors | |
| Pan Speed | 0.01~60°/s | ||
| Max Lifting Speed | 1.18m/s | ||
| Head Payload | 25Kg | ||
| Lifting Range | 0.83m | ||
| Min Height of Lens | 1.25m | 1.35m | |
| Max Height of Lens | 2.08m | 2.18m | |
| Head Tilt Angle | +55° ~ -55°（Upward） | +45° ~ -45°（Upward）；+45° ~ -50°（Downward） | |
| Dolly Type | 200mm Universal Wheel Studio Dolly | ||
| Dolly Size | 1.40m Diameter | ||
| Weights | 46Kg | 45Kg | |

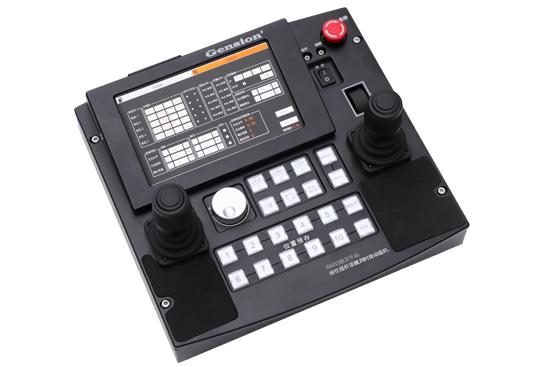

| Operation Model | Remote Control Panel | ||
| Power Input | AC 220V/10A, 50/60 Hz | ||
| Power Out | DC 15V/3A | ||
| Operating Power | 0.85 KW | 0.87 KW | |
| Lifting Encoder Accuracy | None | None | 1,120,000 c/r |
| Head Encoder Accuracy | None | None | 2,090,000 c/r |
| Lens Encoder Accuracy | None | None | Lens Controllers：32，768 c/r |
| Compatible Lens | Full-servo, Semi-servo Fujinon and Cannon Lens；or Lens Controller for Cine Camera, DV Camera or DSLR Camera | ||
