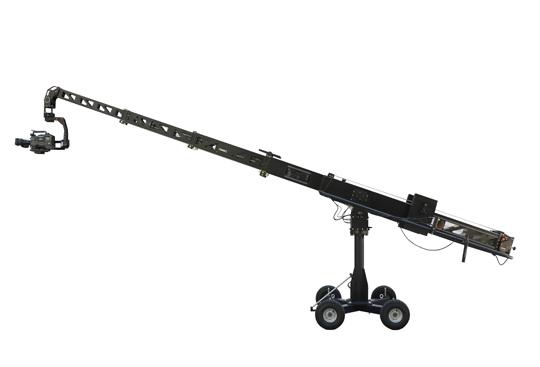

GS-TC-10M Telescopic Cranes
The telescopic crane can extend or shorten the arm, forming a wrapped and more aesthetically spatial motion for the captured scene or character,providing photographers with greater space and possibilities for artistic creation. Telescopic crane are usually controlled by two or more people, also can choose solo control in specific scene.
Professional camera equipment used in various video shooting.
It has a 10 meter long telescopic crane and can be connected to its own or third-party PTZ system.
Main Features
• Solo control and team work
• Built-in electronics, less cables neatly engineered

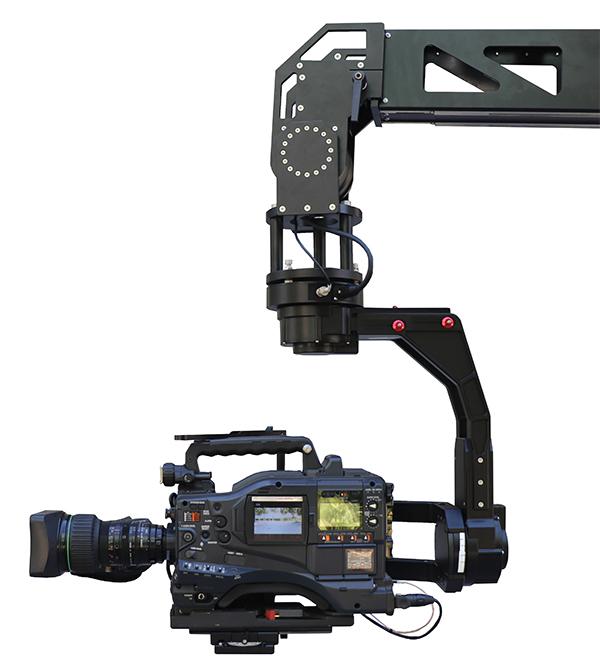

• 2 axis non-stabilized or 3 axis gyro-stabilized fluid head
• VR tracking and Al technology
• Less balance weights, better control feeling
• Safe, precise and easy setup
Tech Specs
| Name | GS-TC-10M | GS-TC-10M VR |
| Fluid Head Type | Optional L Type Head,2 Axis or Gyro-Stabilized Head,3 Axis | |
| Head Payload | 2 Axis：25Kg；Gyro-Stabilized Head：20Kg | |
| Compatible Heads | Head Weight，Less than 35kg with Head and Camera in Total | |
| Telescopic Speed | 1.80m/s | |
| Total Length | 9.90m~4.15m | |
| Telescopic Range | 5.85m | |
| Rear Length | 2.10m | |
| Crane Ht on Level Pst. | 1.90m (Peak Point)； 1.65m（Tilt Center） | |
| Max Lens Height | ≈6.80m | |
| Crane Tilt Angle | +45° ~ -45° | |
| Dolly Type | Four Wheel Square Dolly with Screw Supports | |
| Dolly Size | Length:1.33m；Width:1.28m | |
| Weights (No Balance Wts) | 210Kg | |
| Balance Weights | 150Kg | |
| Operation Model | Team Control with Telescopic One Handle; or Solo Control with Two Handles | |
| Power Input | AC 220V/10A, 50/60 Hz | |
| Power Out | Spin Unit:DC 15V/3A；Head:DC 24V/6A | |
| Operating Power | 1.15 KW | |
| Crane Encoder Accuracy | None | 2,700,000 c/r |
| Head Encoder Accuracy | None | 2,090,000 c/r |
| Lens Encoder Accuracy | None | 32，768 c/r |
| Compatible Lens | Direct Control for DV Cameras; or Cine, DV, SLR Lens Driven by Lens Controllers | |
 |
