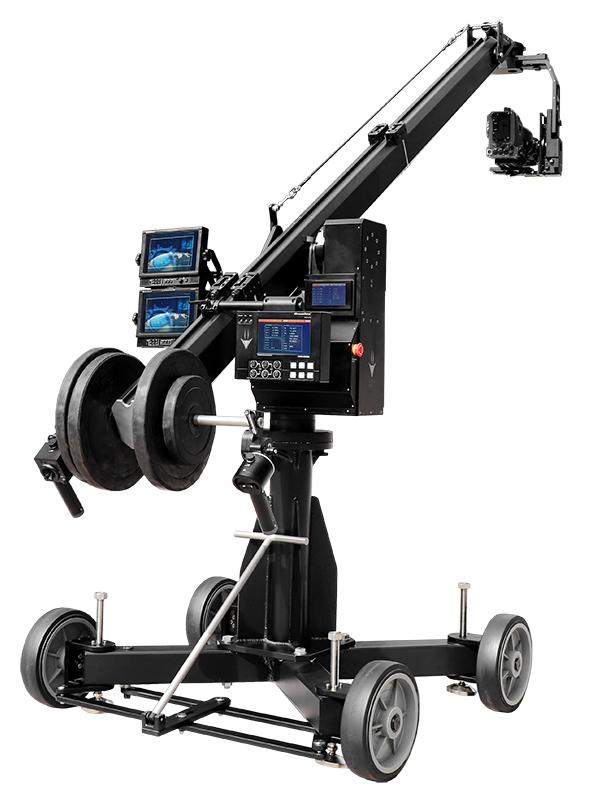

GS-RC-3PRO Robotic Came Crane

Professional Robotic Crane


   GS-RC camera crane robotics is a highly advanced equipment for small studio shooting environment. People have 3 control models with it: Auto track shooting, remote control by pan bar or working table as well as hand controls. Purpose of this design is to reduce human force participated in a picture production, and to allow the production process more stable and easier.

Main Features


   • Auto track shoooting


   • Mute process


   • Rich motion control functions


   • Three camera studio motion ecosystem


   • Dealing with temporary changes in shooting mode


   • High load-bearing head

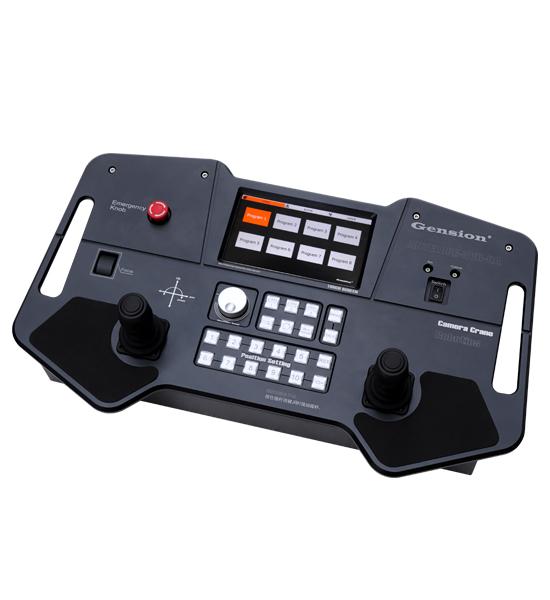

Working Table


   To work with GS-RC in a studio, cameraman should pre-set the desirable camera pos仆ions on the working table. It support as much as 8 programs and 20 positions for shooting. In the auto arm mode, you can press these points so the crane will move and with lens always looking at the target.


   GS-RC has a smart crane arm pan and tilt unit by putting duo-quality-motor and encode「s inside. It moves the crane as pre-located camera positions on the working table. You can have 3 types of moving curves from point to point which gives more vivid picture than liner movement.

Pan Bar Control Mode


   This part has a screen to indicate all necessary data for both equipment condition and VR tracking information. Cameraman can easily turn this robotic into a regular hand controlled crane by settingup a pair of handle and unlock pan& tilt brakes.



Tech Specs

NameGS-RC-3PRO
Fluid Head TypeL Type Head, 2 axis, Built-in High Torque Motors and Encoders
Pan Speed0.01~60°/s
Head Payload30Kg
Total Length2.90m
Front Length2.20m
Rear Length0.70m
Crane Ht on Level Pst.1.40m
Lens Ht on Level Pst.1.10m
Max Lens Height2.50m
Crane Tilt Angle+50° ~ -50°
Dolly TypeFour Wheel Square Dolly with Screw Supports
Dolly SizeLength:1.20m;Width:1.20m
Total Weights (Without Balance Wts)165Kg
Balance Weights50Kg
Operation ModelRemote Control by Operational Panel or by Manual Handles
Power InputAC 220V/10A, 50/60 Hz
Power OutDC 15V/10A
Operating Power1.55 KW
Crane Encoder Accuracy2,700,000 c/r
Head Encoder Accuracy2,700,000 c/r
Lens Encoder AccuracyLens Controllers:32,768 c/r
Compatible LensFull-servo, Fujinon and Cannon Lens
