GS-RR-PRO/VR Track Robotics
Information
● AI human body auto tracking
● Space positioning auto shooting
● Three camera studio visual motion ecosystem
● Dealing with temporary changes in shooting mode
● Highly precise VR tracking data and strong stability
GS-RR-PRO/VR Studio Track Robotics

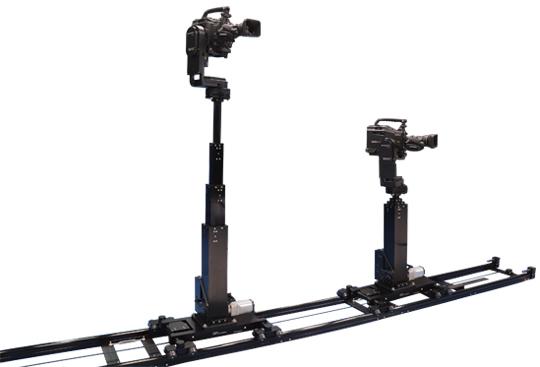

The Penguin studio track robotics has a 1.35m~2.18m auto-lift column and a rigid fluid head with high torque motors. Cameramen are allowed to use any type of long lens for auto zoom and focus thanks to these independent lens controllers.

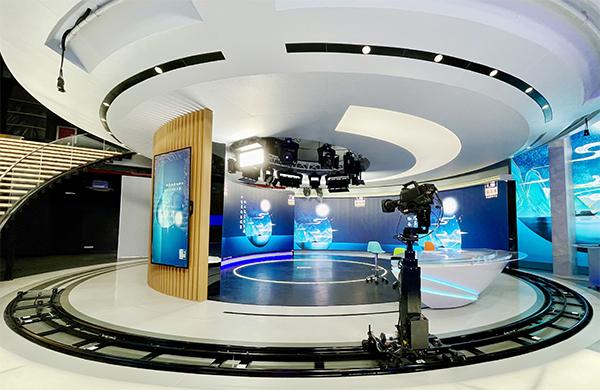

It can be setup on the ground or under the ceiling, so studios could make decision at the very beginning of studio designing. Penguin can run on both straight and curved tracks with very precise positioning features. This robot is quiet in running and can team up with other shooting equipments to be controlled by one panel. Therefore, the cameraman is able to sit down well to manage multi-camera controls remotely.
For better picture quality, a digital gyro-stabilized head can be mounted that would be more excellent in fast moving stage shootings. The robot is fully moduler designed, therefore the fluid head can be directly setup on the dolly for short angle shooting.
Tech Specs
| Name | GS-RR-PRO | GS-RR-VR |
| Fluid Head Type | L Type Head , 2 Axis, Built-in Brushless Motors and Encoders | L Type Tracking , 2 Axis, Built-in Brushless Motors and Encoders |
| Pan Speed | 0.01~60°/s | |
| Head Payload | 25Kg | |
| Max Lifting Speed | 1.18m/s | |
| Max Track Speed | 2.36m/s | |
| Lifting Range | 0.84m | |
| Min Lens Ht（Upward） | 1.27m | |
| Max Lens Ht（Upward） | 2.11m | |
| Min Lens Ht（Downward） | 1.31m | |
| Max Lens Ht（Downward） | 2.15m | |
| Head Tilt Angle | +45° ~ -45°（Upward）；+45° ~ -50°（Downward） | |
| Dolly Type | Square Shapped Dolly with 16 Wheels | |
| Dolly Size | Length:0.80m；Width:0.55m | |
| Weights | 55Kg | |
| Track | Track Width:420mm; Track Diameter:42.2mm | |

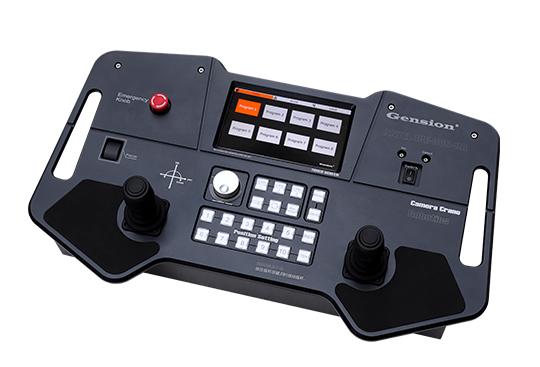

| Operation Model | Remote Control Panel | |
| Power Input | AC 220V/10A, 50/60 Hz | |
| Power Out | DC 15V/3A | |
| Operating Power | 1.25 KW | |
| Lifting Encoder Accuracy | None | 1,120,000 c/r |
| Head Encoder Accuracy | None | 2,090,000 c/r |
| Lens Encoder Accuracy | None | Lens Controllers：32，768 c/r |
| Compatible Lens | Full-servo, Semi-servo Fujinon and Cannon Lens；or Lens Controller for Cine Camera, DV Camera or DSLR Camera | |
 |
