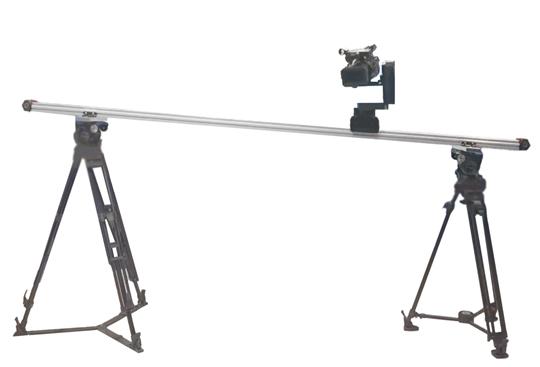

FLYING FOX Light Camera Track Robotics
Information
● L type with 2 axis
● Built-in brushless motors and sensors

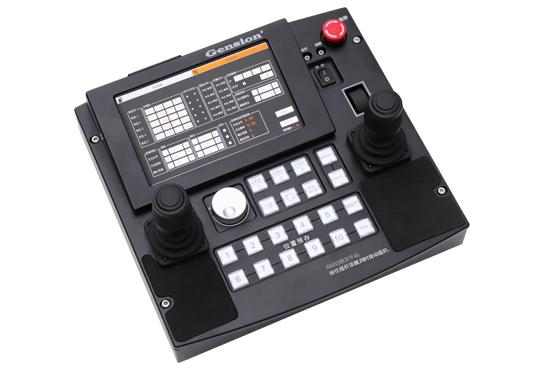

● Remote control panel
Tech Specs
| Name | Flying Fox PRO | Flying Fox VR |
| Fluid Head Type | L Type, 2 Axis, Built-in Brushless Motors and Sensors | L Type Tracking, 2 Axis, Built-in Brushless Motors and Sensors |
| Pan Speed | 0.1~60°/s | |
| Head Payload | 6Kg | |
| Track | Width:60mm，Height:52mm (Customerized Length for Max 5 Meter) | |
| Installation Type | Wall Install:Level and Vertical Ceiling Install:Roof and Truss Ground Install:Hard and Soft Floor Slope Install:Tripod Install | |
| Max Track Speed at Level | 1.8m/s | |
| Max Track Speed at Vertical | 1.2m/s | |
| Weights | 2.5m Track:18Kg（Track 7.2kg/m） Electronics：2.6Kg Head：2.3Kg | |
| Operation Model | Remote Control Panel | |
| Power Input | AC 220V/10A, 50/60 Hz | |
| Power Out | DC 12V/10A | |
| Operating Power | Vertical Install: 780W, Level or Slope Install: 430W | |
| Track Encoder Accuracy | None | 1,120,000 c/r |
| Head Encoder Accuracy | None | 260,000 c/r |
| Lens Encoder Accuracy | None | 32，768 c/r |
| Compatible Lens | Full-servo, Semi-servo Fujinon and Cannon Lens；or Lens Controller for Cine Camera, DV Camera or DSLR Camera | |
